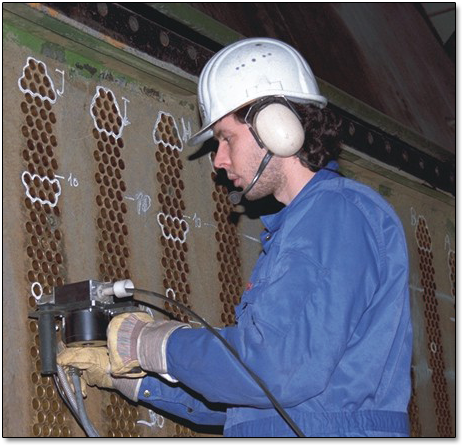

Condensor Testing, Assistent with Push-Puller

Heat Exchanger Tube Inspection

Heat exchangers, nuclear reactors, boilers and condensers are used in all fields of energy supply, such as the oil, gas and petrochemical industries. Failure of the tubing within these heat exchangers, will result in the undesirable discharge and
mixture of the contained media.

Consequences of defective heat exchanger tubing

• Loss of investment due to damage of high value plant components.
• Loss of profit due to interuption or complete breakdown of plant production.
• Increased reject rate due to a mixture of media.
• Environmental pollution.
• Loss of image.


Our state of the art corrosion inspection method with the eddy current technique, can help avoid costly production disturbances, by early detection of possible tube wall damage. This with the advantage of accurate documentation for further preventative maintainance.

KontrollTechnik carry out all inspections with the latest state of the art TMT eddyMax® eddy current computerised technology, which provides fast data acquisition and entire defect result documentation.
With 35 years of field experience our operators and analysts ensure a reliable and quality service to all inspection tasks undertaken, no matter how extraordinary the requirements.

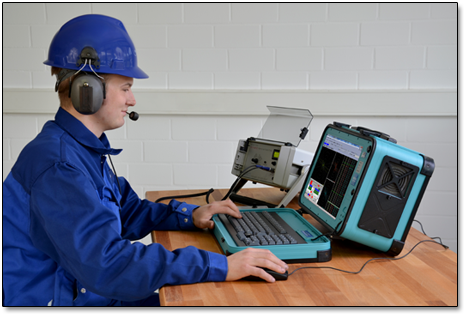

Operator with C-Mec Remote Field System

Your Benefit

Safe Plant Operation

• Detection of damaged areas
• Accurate plugging of defective tubes.

Comprehensive data for accurate and cost effective decisions

• Monitoring of Tube defect progression and quality.
• Foward planning with precise tube condition information.

Excellent cost to profit ratio

• High inspection speed.
• Low pre-inspection preperation costs.





Accurate choice of inspection method to give optimal defect detection and results

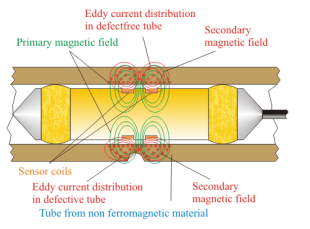

Conventional Eddy Current Bobbin Probe Magnetic Bias Eddy Current Bobbin Probe Remote Field (RFET / RFEC) Eddy Current Bobbin Probe

Conventional Multifrequency Eddy Current

• Multifrequency eddy current method for inspection of non ferromagnetic tubes in heat exchangers, condensors, coolers, reactors, heaters, air conditioning coolers

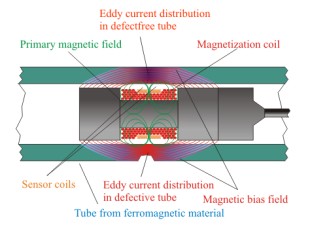

Magnetic Bias Eddy Current

•  Magnetic bias eddy current defect detection within ferromagnetic tubes using superimposed DC field magnetization. Sensitive for local defects.

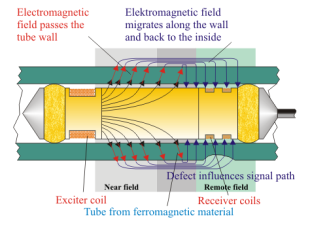

C-MEC®-Remote Field Eddy Current

• Multi-frequency remote field eddy current inspection method, for defect detection within ferromagnetic and thick wall non-ferromagnetic tubes.

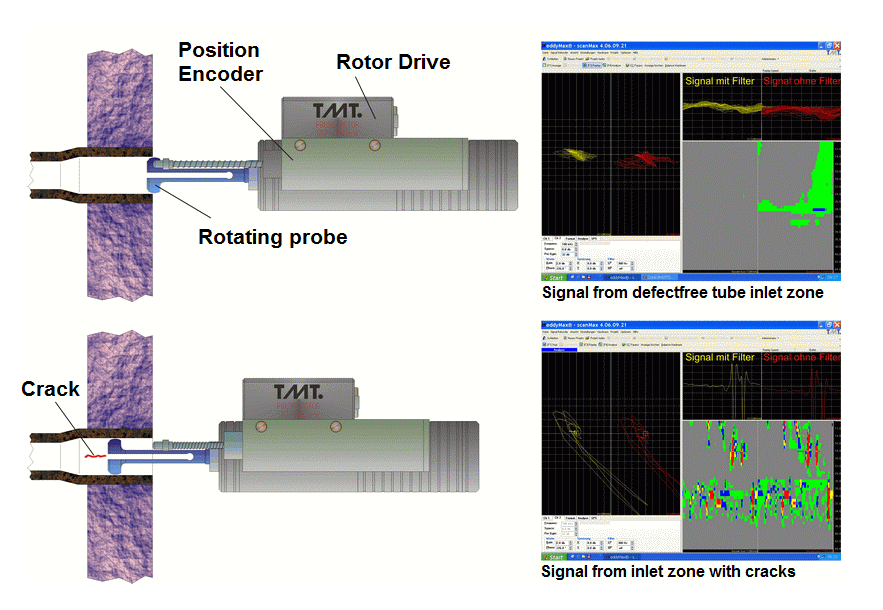

Eddy Current Probe Rotor


RotoScan RP-Method

• C-Scan inspection with rotating eddy current probes, for defect detection
in bore holes, pipes and tube expanded zones, within ferromagnetic and
non-ferromagnetic materials.




Extended Service

• Comprehensive data and documentation for further tube defect monitoring.
• Remote controlled manipulator systems

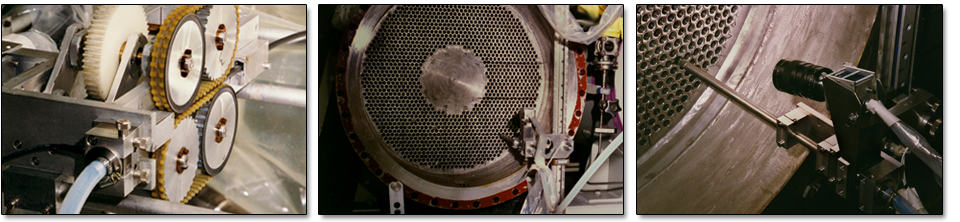

Heat Exchanger Testing Manipulator



• Inspection of straight tubes from diameter > 4 mm
• Inspection of bended tubes
• Inspection of boiler tubes
• Inspection of finned tubes
• Inspection of air cooler tubes
• Inspection of the tube expanded zone and welds
• Remote controlled tube inspection in high radiation areas or areas with difficult access

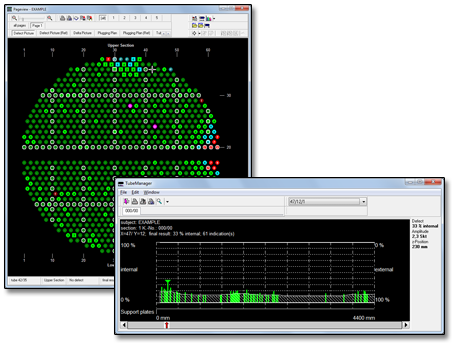

WinDevos Documentation Software

• Tube sheet map
• Coloured defect map
• Graphical and numerical statistics
• Single tube monitoring
• Plugging map by free choice of plugging limits
• Defect progression map
• Defect progression statistics
• Single tube defect progression

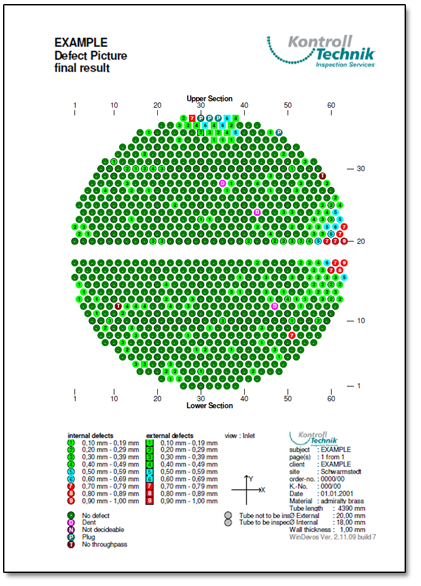

Tube Map Report Sheet

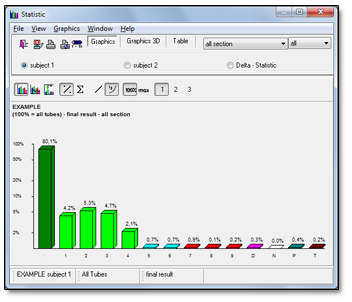

Statistical Results
